Servo Motors
Integrated servo motors with built-in drives for AMR and AGV traction, lifting and steering axes, controlled over CANopen or EtherCAT.
60 / 80 Series DC Servo · 200–750 W
ISL Series L-Shaped Servo All-in-One

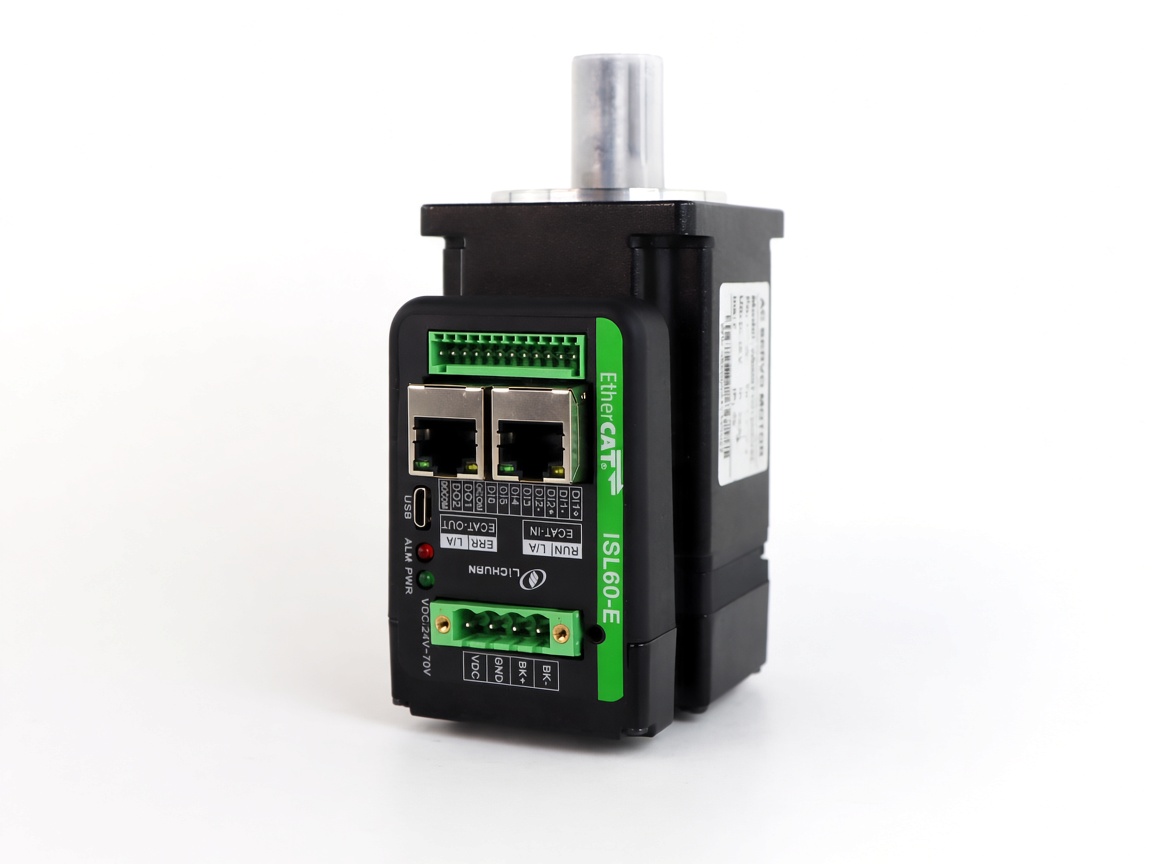

A low-voltage integrated DC servo motor with the drive built into an L-shaped housing on the motor body. Removing the separate drive cabinet saves wiring and space inside the robot chassis, while the CANopen or EtherCAT fieldbus lets the robot main controller command position, speed and torque directly. Ideal for AMR and AGV drive wheels, lift mechanisms and automated machinery.
- Drive and motor in one compact L-shaped body
- CANopen or EtherCAT fieldbus with dual RJ45 daisy-chain ports
- Position, speed and torque control modes
- 17-bit incremental or absolute encoder
- Built-in brake terminals (BK+ / BK−) and digital I/O
- USB port for tuning and diagnostics
Variants
Models & Specifications
| Specification | ISL60-C-200W-24V-17 | ISL60-C-200W-48V-17 | ISL60-C-400W-48V-17 | ISL60-C-600W-48V-17 | ISL80-C-750W-48V-17 |
|---|---|---|---|---|---|
| Frame size (mm) | 60 | 60 | 60 | 60 | 80 |
| Rated power (kW) | 0.2 | 0.2 | 0.4 | 0.6 | 0.75 |
| Rated voltage (V) | 24 | 48 | 48 | 48 | 48 |
| Rated current (A) | 12 | 6.0 | 10 | 15 | 20 |
| Rated speed (rpm) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Holding torque (N·m) | 0.637 | 0.637 | 1.27 | 1.91 | 2.4 |
| Peak torque (N·m) | 1.91 | 1.91 | 3.81 | 3.81 | 7.2 |
| Voltage constant (V/1000 rpm) | 3.85 | 7.7 | 8.0 | 8.5 | 8.0 |
| Torque coefficient (N·m/A) | 0.053 | 0.106 | 0.127 | 0.127 | 0.13 |
| Rotor inertia (kg·m²) | 0.29 × 10⁻⁴ | 0.29 × 10⁻⁴ | 0.53 × 10⁻⁴ | 0.68 × 10⁻⁴ | 1.62 × 10⁻⁴ |
| Resistance (Ω) | 0.17 | 0.63 | 0.39 | 0.25 | 0.08 |
| Inductance (mH) | 0.27 | 1.12 | 0.72 | 0.43 | 0.27 |
| Mechanical time constant (ms) | 1.58 | 1.77 | 1.8 | 1.7 | 3.4 |
| Weight (kg) | 1.0 | 1.0 | 1.4 | 1.8 | 2.36 |

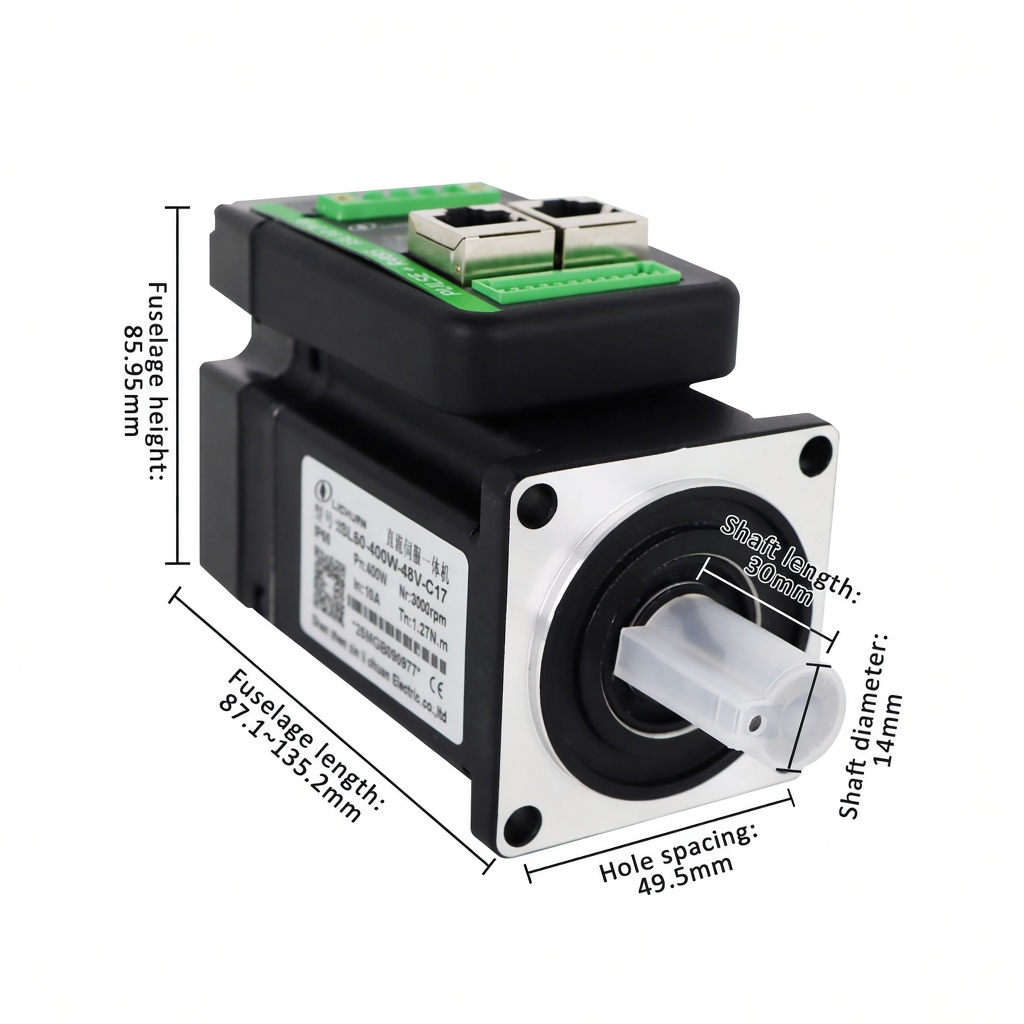

| Motor length (mm) | 87.1 | 87.1 | 103.6 | 135.2 | 121.5 |
| Shaft diameter (mm) | 14 | 14 | 14 | 14 | 19 |
| Shaft keyway (mm) | 5 × 5 × 20.5 | 5 × 5 × 20.5 | 5 × 5 × 20.5 | 5 × 5 × 20.5 | 6 × 6 × 25 |
| Shaft length (mm) | 30 | 30 | 30 | 30 | 35 |
